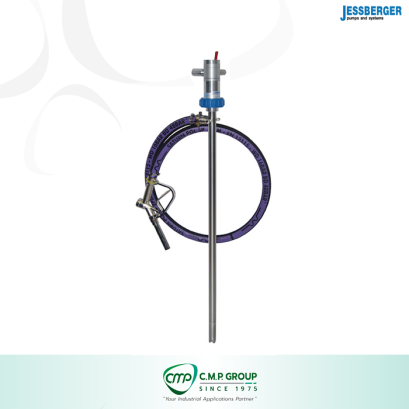

Laboratory pump set with electric motor for concentrated media
Laboratory pump set JP-140 PVDF (HC), Ø 32 mm
Universal motor JP-140, 230 V, 50 Hz, 450 W, protection class IP 24, double insulated category II, over load protection switch with low voltage release, thermo protection, 5 m cable and plug.
Pump tube:
PVDF, outer-Ø 32 mm, Hastelloy-shaft
Connection thread G 1″
Hose connection ¾” (DN 19)
2 m Multi purpose chemical hose ¾” (DN 19)
2 Hose clamps Stainless steel
1 Nozzle PVDF ¾”
Specifications JP-140 | |
|---|---|
| Flow rate (with hose and oval gear meter) | Ø 32 mm up to 49 l/min* |
| Head | Ø 32 mm up to 10 m* |
| Viscosity | up to 400 mPas* |
| Density | up to 1,3* |
| * All physical data are real measured maximum values. * Test medium water 20 ° C, 2 m pressure pipe 1″, oval gear meter 1″, measured values: ± 5% Attention: When using a nozzle, the flow rate is reduced to app. 20-40 l/min (depends on the pump and application). | |
